The 2026 Subaru Uncharted is a five-door, five-passenger battery-electric SUV built on the Subaru e-Global Platform. Its electric drivetrain uses AC synchronous permanent-magnet motors, integral transaxles, and power inverters to provide front-wheel-drive or all-wheel-drive capability according to trim level. A 74.7-kWh lithium-ion battery supplies energy, while North American Charging Standard compatibility supports Level 2 and DC fast charging. The 2026 Subaru Uncharted also combines four-wheel independent suspension, electronically controlled braking, driver-selectable regenerative braking, and the available Subaru Symmetrical All-Wheel Drive. Its technical package includes multiple drive modes, traction-management systems, defined passenger and cargo dimensions, and trim-specific wheel and tire configurations.
Electric Powertrain and Charging
The 2026 Subaru Uncharted uses an all-electric drivetrain engineered around permanent-magnet motor technology and single-ratio reduction transaxles. The Premium FWD configuration produces 165 kW, equivalent to 221 horsepower. Sport and GT models increase total output to 252 kW, equivalent to 338 horsepower. Each transaxle uses a 13.8-to-1 reduction ratio to transfer motor output through the drivetrain. This arrangement provides a direct mechanical connection between the electric drive system and the wheels without requiring a conventional multigear transmission.
Battery Pack Specifications
A lithium-ion battery pack supplies the energy required by the 2026 Subaru Uncharted electric powertrain. The pack contains 104 cells and provides a total capacity of 74.7 kWh. Its rated voltage measures 392 volts, while its rated capacity stands at 191 amp-hours. Subaru equips the battery with cooling and heating systems that manage its operating temperature. EPA-estimated driving range remains to be determined, so no official range figure applies to the model at this stage.
NACS Charging Capability
The 2026 Subaru Uncharted uses the North American Charging Standard, commonly identified as NACS. Subaru positions the charging port on the vehicle's right fender for direct exterior access. Level 2 charging at 240 volts and 32 amps requires approximately seven hours. DC fast charging can bring the battery to an 80 percent charge in as little as 28 minutes. These specifications provide defined charging options for routine battery replenishment and shorter high-output charging sessions.
All-Wheel Drive and Selectable Modes
Sport and GT trim levels use Subaru Symmetrical All-Wheel Drive with electronic power-controlled variable power distribution. Independent front and rear electric motors manage output at the two axles, allowing the system to vary power distribution electronically. These trims also include X-MODE® with Snow/Dirt and Deep Snow/Mud settings, along with Grip Control, Downhill Assist Control, and Hill-Start Assist. Drive Mode Select provides Normal, Power, and Eco modes so the driver can adjust vehicle response through dedicated operating programs. Premium FWD uses a front-wheel-drive arrangement, while Sport and GT combine their higher output ratings with a dual-motor all-wheel-drive system.
Disclaimer: Charge time varies based on vehicle level of charge, charging rate, ambient temperature, and many other factors.
Passenger Space and Cargo Utility

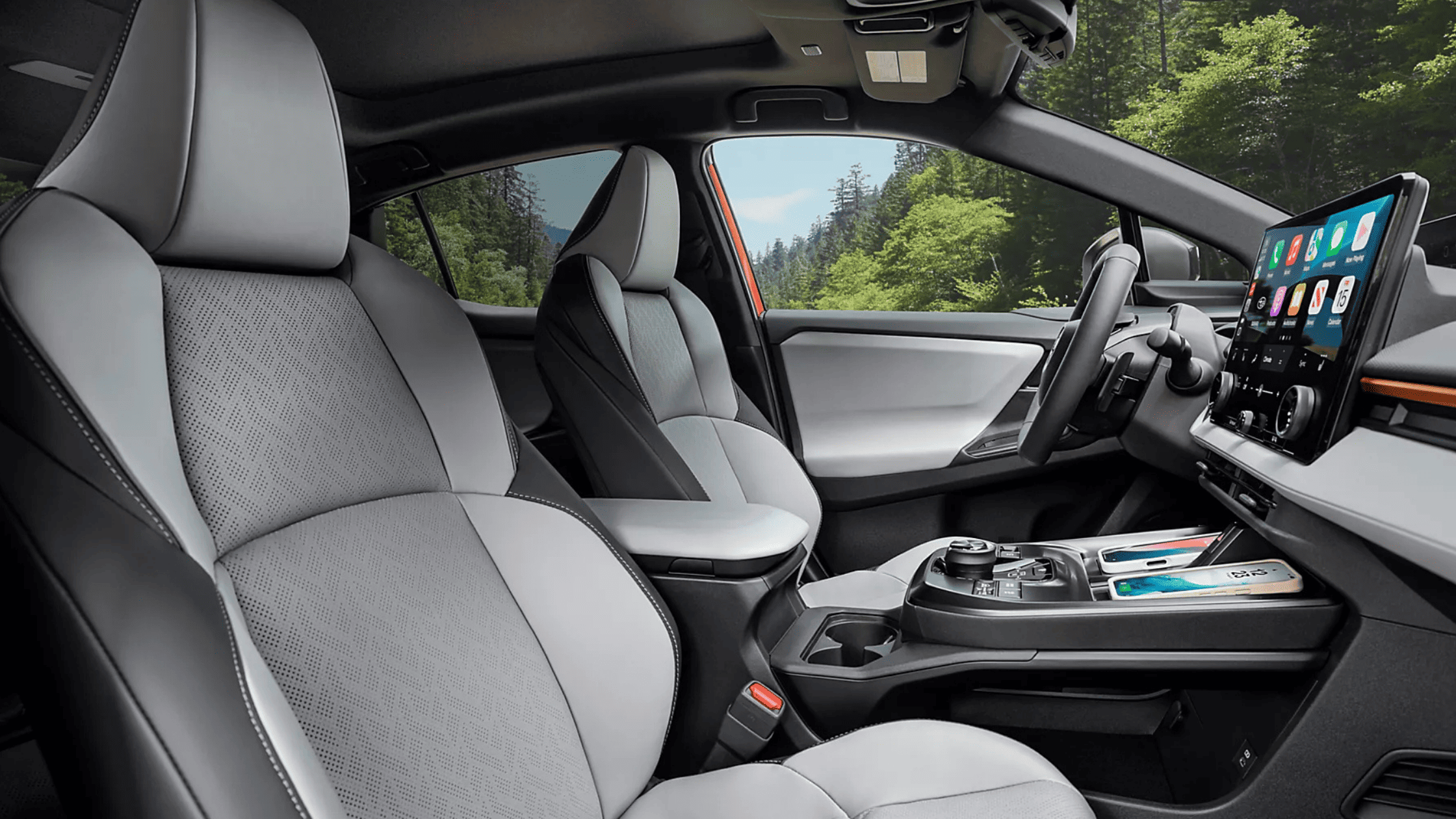

The five-passenger cabin of the 2026 Subaru Uncharted provides measured space for both seating rows. Front legroom measures 42.1 inches, while rear legroom measures 32.2 inches. Front and rear hip room measures 54.5 and 44.8 inches, respectively. Shoulder room measures 58.0 inches in the front and 54.7 inches in the rear. These dimensions define the available occupant space throughout the two-row interior using specific measurements.
Headroom and Passenger Volume
Listed front and rear headroom figures measure 39.1 and 38.6 inches, respectively, in one configuration. A second listed configuration provides 37.5 inches of front headroom and 36.4 inches of rear headroom with the moonroof. EPA passenger volume measures 93.6 cubic feet in the standard listed configuration. Models with the moonroof provide 91.7 cubic feet of EPA passenger volume. The difference between these passenger-volume figures corresponds with the cabin dimensions associated with the moonroof configuration.
Adjustable Cargo Floor
The rear cargo area uses an adjustable deck board with upper and lower positions. EPA cargo volume measures 23.0 cubic feet with the board in its upper position and 25.4 cubic feet with it in the lower position. The maximum rear cargo opening spans 37.4 inches in width. Maximum cargo length measures 64.4 inches behind the front row and 34.9 inches behind the second row. These dimensions identify the available floor length with the rear seating area configured for passengers or additional cargo space.
Cargo-area height also changes according to the position of the adjustable deck board. The upper position provides a maximum cargo-area height of 28.8 inches. Moving the board to its lower position increases the maximum height to 31.8 inches. This adjustment accompanies the increase from 23.0 to 25.4 cubic feet of EPA cargo volume. The specified dimensions allow drivers to select a deck-board position that accommodates the height and volume requirements of a particular load.
Chassis, Suspension, Steering, and Braking
The Subaru e-Global Platform and unitized body construction establish the structural foundation of the 2026 Subaru Uncharted. Subaru combines this architecture with four-wheel independent suspension and electric power-assisted steering. The braking system integrates four-wheel disc brakes, electronic assistance, conventional brake-control functions, and regenerative deceleration. Vehicle Dynamics Control works with all-wheel, all-speed traction control, which Subaru identifies as TRC. Active Cornering Assist adds another control function to the vehicle's stability and traction systems.
Four-Wheel Independent Suspension
The front suspension uses MacPherson®-type struts with internal rebound springs. Lower L-arms, coil springs, and a stabilizer bar complete the front layout. At the rear, Subaru uses a double-wishbone design with coil springs and dampers that also contain internal rebound springs. Steel lower arms feature aerodynamic covers, and a rear stabilizer bar forms part of the assembly. This combination gives every 2026 Subaru Uncharted trim a fully independent suspension configuration at all four wheels.
Quick-Ratio Electric Steering
The steering system uses a quick-ratio, electric power-assisted rack-and-pinion design. Variable-speed and torque-sensitive assistance adjusts the level of support according to steering conditions. Subaru specifies a steering ratio of 14.2 to 1 for the 2026 Subaru Uncharted. The steering mechanism requires 2.81 turns from lock to lock. A 36.08-foot turning circle defines the space required for the vehicle to complete a full turn.
Disc and Regenerative Braking
Electronically Controlled Power-Assisted Braking operates four disc brakes on the 2026 Subaru Uncharted. The system includes four-channel, four-sensor antilock braking, Brake Assist, and a Brake Override system. Front brake hardware consists of 12.9-inch ventilated discs and dual-piston calipers. The rear axle uses 12.5-inch ventilated discs with single-piston calipers. A Regenerative Braking System provides four driver-controlled modes that the driver selects through steering-wheel paddle switches.
Exterior Dimensions and Trim-Specific Equipment
The 2026 Subaru Uncharted packages its battery-electric drivetrain within a compact five-door SUV body. It measures 177.8 inches long, 73.6 inches wide, and 63.8 inches high. The wheelbase spans 108.3 inches, supporting the model's five-passenger cabin and defined cargo area. Front track measures 63.0 inches, while rear track measures 63.4 inches. Minimum ground clearance stands at 8.2 inches across the listed model specifications.
Wheels and Tires
Premium FWD and Sport trims use 18-by-7.5-inch aluminum-alloy wheels. Subaru equips these wheels with full gloss black plastic wheel covers and 235/60R18 103V all-season tires. The GT receives 20-by-7.5-inch aluminum-alloy wheels with a gunmetal finish and black spoke inserts. Its larger wheels carry 235/50R20 100V all-season tires. These trim-specific combinations distinguish the GT chassis equipment from the 18-inch wheel and tire package fitted to Premium FWD and Sport models.
Curb Weight and Roof-Rail Capacity
Base curb weight varies according to drivetrain configuration and trim equipment. The Premium FWD has a listed base curb weight of 4,145 pounds. The dual-motor Sport increases that figure to 4,430 pounds. The GT has a base curb weight of 4,480 pounds. Subaru also specifies a 176-pound dynamic load limit for the roof rails, defining the supported load while the vehicle is moving.
